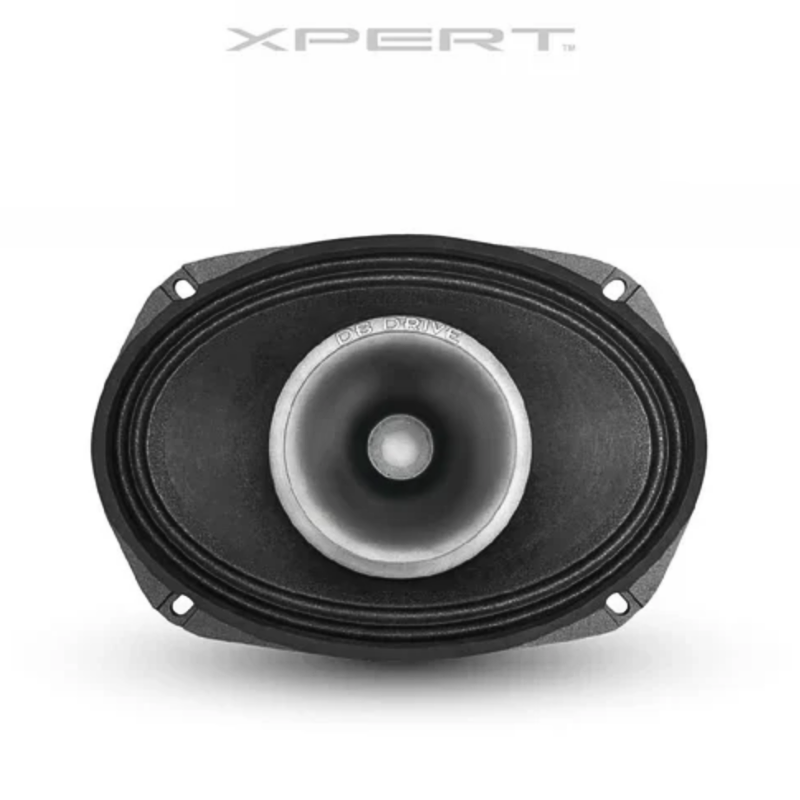

The Xpert EX69NCD 6x9″ 2-Way NEO Loudspeakers with Rear-Mounted Compression Driver (Pair) deliver premium sound clarity, high output, and rugged durability for serious audio enthusiasts.
Product Description
High-Performance Audio Engineering

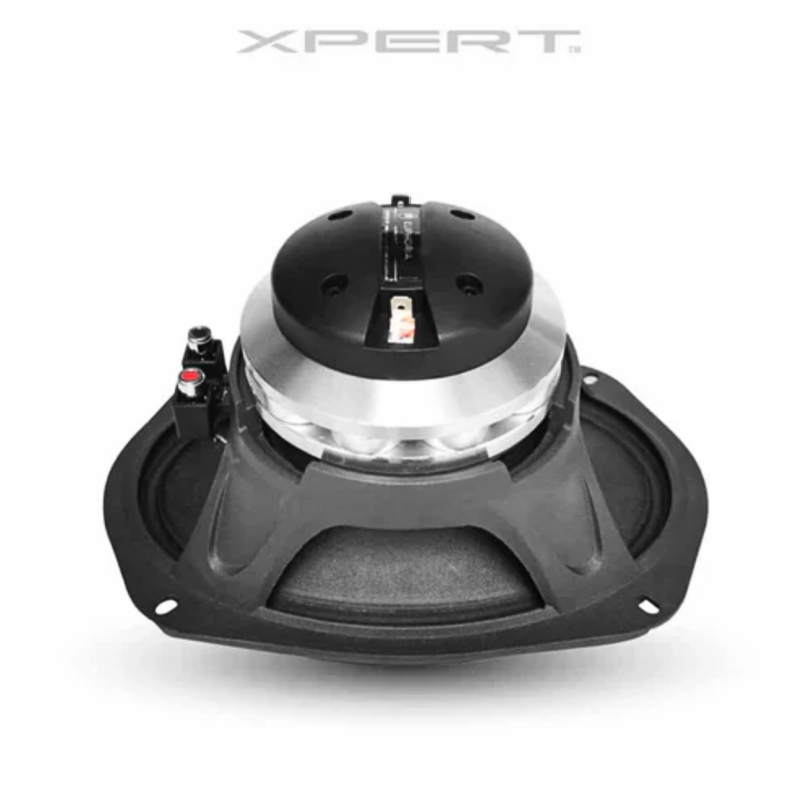

The Xpert EX69NCD is built for precision and power, featuring a rear-mounted full-sized compression driver paired with a 2.0″ midrange voice coil. The wide-dispersion conical HF waveguide ensures balanced, room-filling sound across the listening area.
Premium Build for Longevity
Its IP52-rated paper cone with treated cloth surround provides weather resistance while maintaining rich, natural tones. A die-cast aluminum basket with radial venting maximizes heat dissipation and structural integrity.
Serious Power & Sensitivity
With 500 watts RMS and 1000 watts peak power handling, these speakers deliver impactful sound without distortion. A 93.4 dB sensitivity rating ensures efficient performance from your amplifier.
Precision Sound Tuning
The 12dB passive crossover ensures smooth frequency separation for detailed highs and robust lows. A 1.4″ polyester tweeter diaphragm adds crisp, clear top-end response.
Versatile Applications
Whether for competitive sound setups, high-end custom installs, or professional audio applications, the EX69NCD is built to perform in demanding conditions.
Comparison Chart
| Feature | Xpert EX69NCD | Xpert EX6NCD-CF |
|---|---|---|
| Size | 6x9″ | 6.5″ |
| Cone Material | Paper (IP52) | Carbon Fiber (IP54) |
| Compression Driver | ✅ Yes | ✅ Yes |
| RMS / Peak Power | 500W / 1000W | 400W / 800W |
| Sensitivity | 93.4 dB | 105.7 dB |
| Frequency Response | 78Hz–20KHz | 60Hz–20KHz |
Professional Thoughts
The EX69NCD is the perfect choice for audio builds needing both volume and clarity in a larger speaker size. The rear-mounted compression driver and precision waveguide deliver a detailed, immersive sound profile, while its rugged construction ensures reliability in even the most demanding environments.
F.A.Q.
Q: Are these sold as a pair?
A: Yes, the EX69NCD is sold as a matched pair.
Q: Are they weather-resistant?
A: Yes, they are IP52 rated for dust and water resistance.
Q: How much power can they handle?
A: 500W RMS and 1000W peak per pair.
Q: Do they include crossovers and grills?
A: Yes, 12dB passive crossovers are included; grills may be sold separately depending on package.
Q: What’s the mounting depth?
A: 4.42″ (112.3mm).
Technical Details
-
Model: EX69NCD
-
Size: 6x9″ 2-Way Loudspeaker
-
Cone Material: IP52-rated Paper with treated cloth surround
-
Tweeter: 1.4″ Polyester Diaphragm (Rear-Mounted Compression Driver)
-
Voice Coil: 2.0″ Midrange (51mm)
-
Magnet: 10 Neodymium Ring Magnet Assembly
-
Basket: Die-Cast Aluminum with radial venting
-

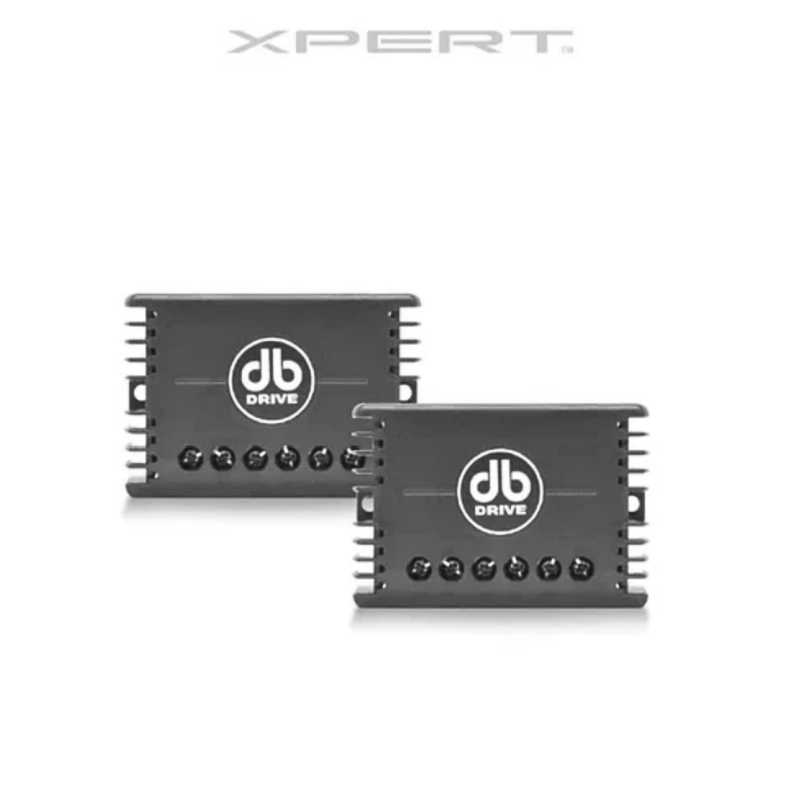

Crossover: 12dB passive included
-
Nominal Impedance: 4Ω
-
RMS Power: 500W
-
Peak Power: 1000W
-
Sensitivity: 93.4 dB (1W/1m)
-
Frequency Response: 78Hz – 20KHz
-

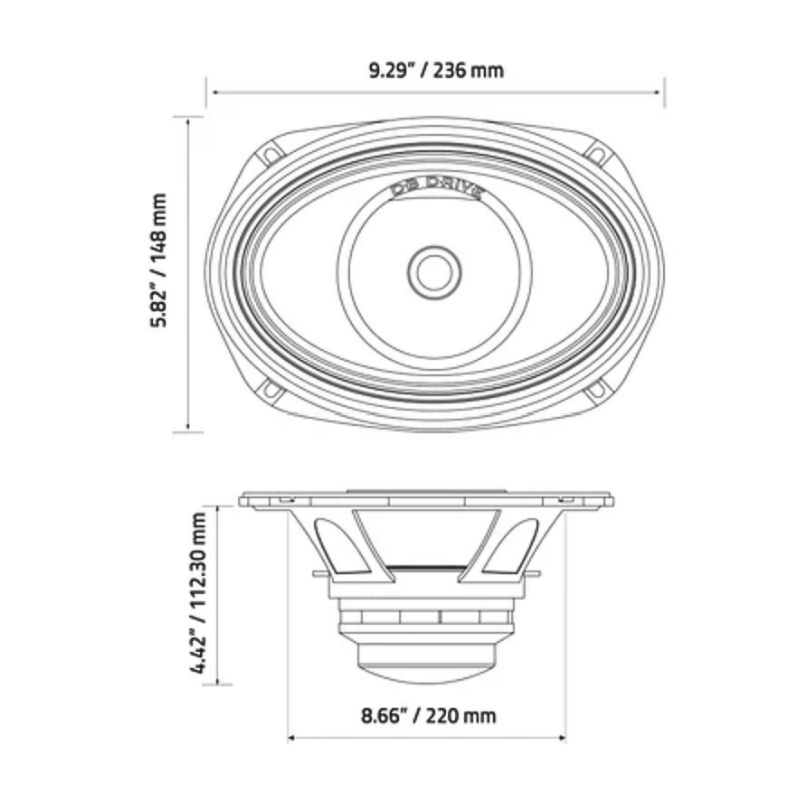

Dimensions: Mounting Depth 4.42″ (112.3mm), Cutout Diameter 5.82″ x 8.66″ (148mm x 220.42mm)
-
Sold As: (Pair)
For unmatched power, clarity, and rugged reliability, the Xpert EX69NCD 6x9″ 2-Way NEO Loudspeakers with Rear-Mounted Compression Driver (Pair) are built to outperform.
