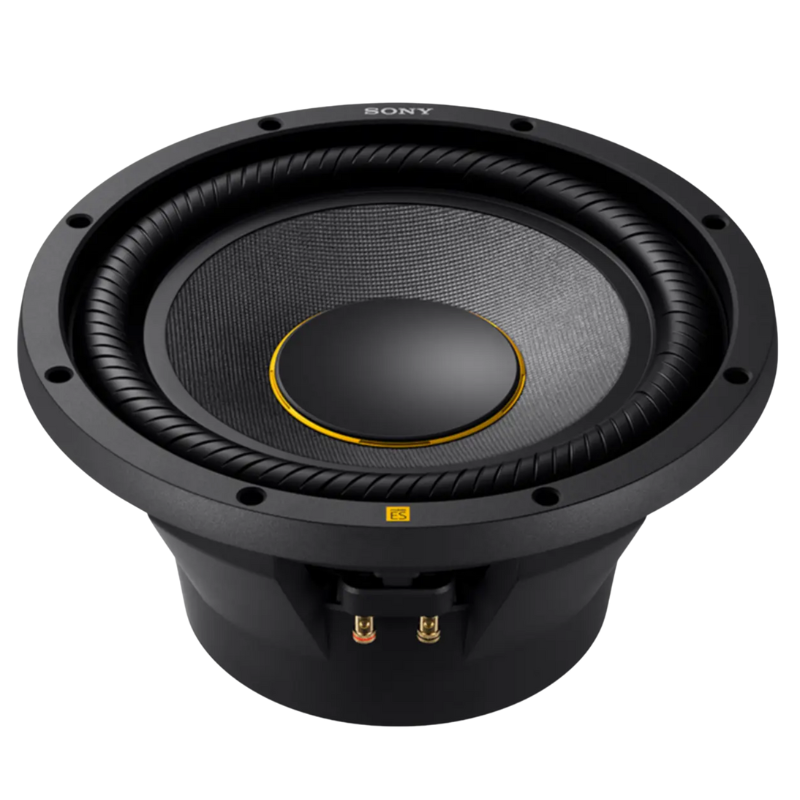

Front view of Sony XS-W122ES 12" subwoofer.

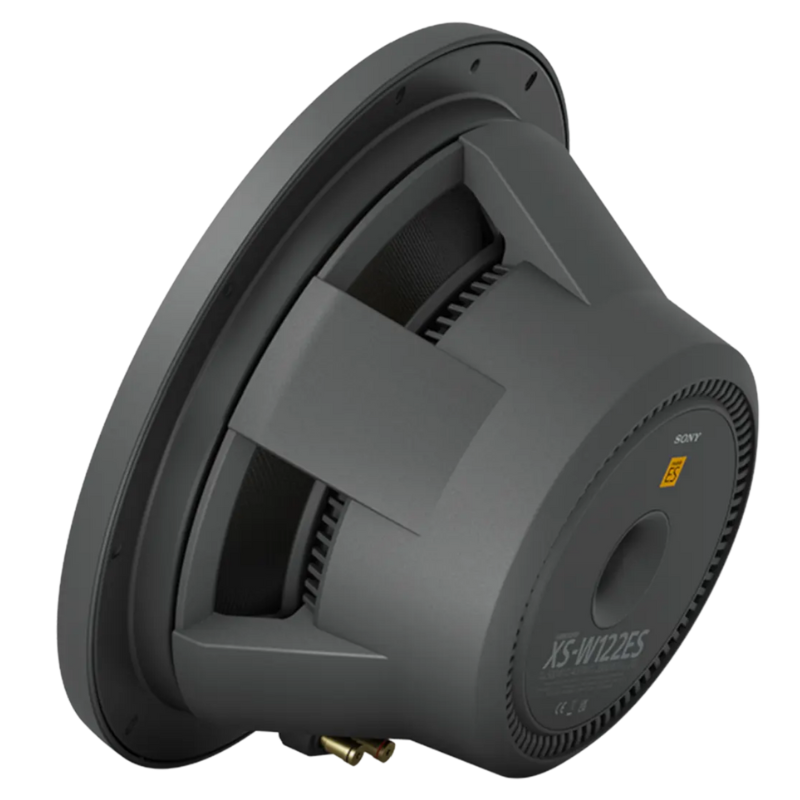

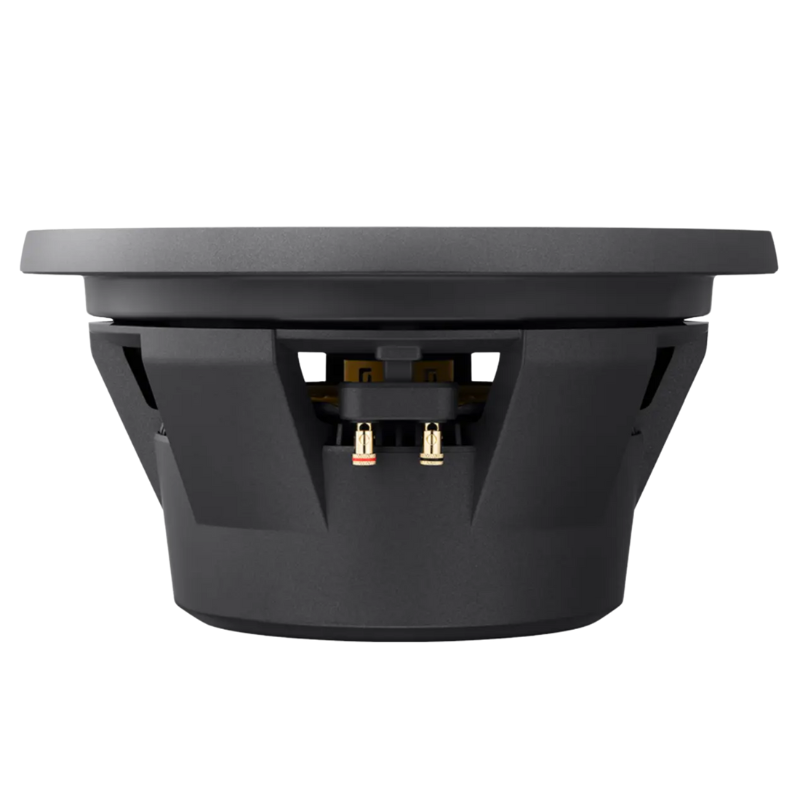

Side profile showing mounting depth of XS-W122ES.
Five-Beam Frame structure of XS-W122ES

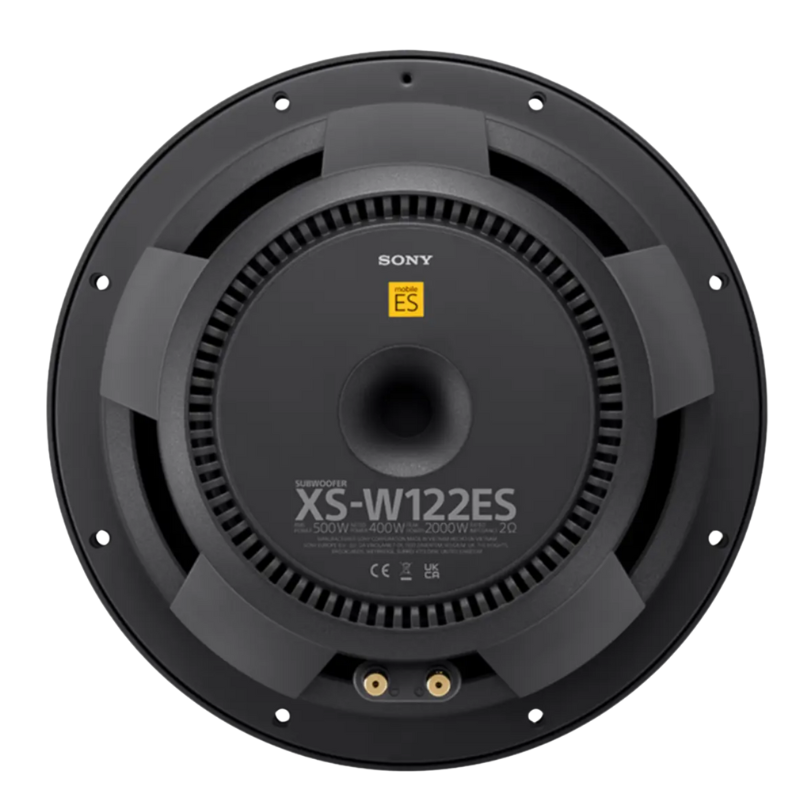

Rear view displaying magnet structure and terminals.
Dynamic Air Diffuser integrated into subwoofer design.

Sony XS-W122ES Mobile ES 12" 2-ohm Subwoofer

Front view of Sony XS-W122ES 12" subwoofer.

Sony XS-W122ES Mobile ES 12" 2-ohm Subwoofer

$319.00 $349.00
Product description

Experience Deep, Accurate Bass

Elevate your vehicle's audio system with the Sony XS-W122ES Mobile ES™ 12" 2-ohm Subwoofer. Engineered for audiophiles, this subwoofer delivers deep, accurate bass with exceptional clarity and minimal distortion. Its advanced design and materials ensure a powerful and immersive listening experience.

Key Features:

  • Lightweight Rigid Cellular (LRC) Honeycomb Cone: Provides exceptional rigidity and responsiveness for accurate bass reproduction.

  • Separated Notch Edge Surround: Enhances linearity and reduces distortion, ensuring clear and natural sound.

  • Progressive Height Rate Spider: Allows for higher power handling and airflow, ensuring durability and consistent performance.

  • Five-Beam Frame Design: Disperses resonance for cleaner sound.

  • Dynamic Air Diffuser: Promotes efficient air circulation for smooth cone travel and cooling of the voice coil.

  • Gold-Plated Input Terminals: Allow up to 10-gauge speaker cables for secure and reliable connections.

Specifications:

  • Power Handling: 500W RMS / 2000W Peak

  • Frequency Response: 20 – 700 Hz

  • Sensitivity: 80.5 dB (1W, 1m)

  • Impedance: 2 Ohms

  • Mounting Depth: 5.896"

  • Mounting Height: 0.573"

  • Sealed Box Volume: 0.67 – 1.04 cubic feet

  • Ported Box Volume: 1.34 – 1.85 cubic feet

  • Magnet Material: Ferrite

  • Surround Material: Rubber (Separated Notch)

  • Voice Coil Configuration: Single Voice Coil

What's in the Box:

  • 1 x 12" 2-ohm Subwoofer

  • Detachable Gasket

  • Installation Instructions

  • Warranty Information


📊 Comparison Chart

Feature Sony XS-W122ES JL Audio 12W0v3-4 Rockford Fosgate P3D2-12
Configuration Single Voice Coil Single Voice Coil Dual Voice Coil
Size 12" 12" 12"
Frequency Response 20 – 700 Hz 25 – 250 Hz 28 – 250 Hz
RMS Power Handling 500W 300W 600W
Peak Power Handling 2000W 600W 1200W
Sensitivity 80.5 dB 85.1 dB 85 dB
Cone Material LRC Honeycomb Polypropylene Anodized Aluminum
Mounting Depth 5.896" 5.4" 6.66"
Sealed Box Volume 0.67 – 1.04 cu. ft. 1.15 cu. ft. 1.02 cu. ft.
Ported Box Volume 1.34 – 1.85 cu. ft. 1.75 cu. ft. 1.79 cu. ft.

💬 What Customers Are Saying

"This subwoofer delivers tight and punchy bass that brings my music to life. The build quality is top-notch, and installation was straightforward."
Jason L., Stereo Installs customer

"I was blown away by the clarity and depth of the bass. The XS-W122ES exceeded my expectations and complements my system perfectly."
Emily R., Stereo Installs customer


❓ Frequently Asked Questions

Q: What type of enclosure is recommended for the XS-W122ES?
A: The subwoofer performs well in both sealed and ported enclosures. For sealed boxes, a volume between 0.67 – 1.04 cu. ft. is recommended. For ported boxes, 1.34 – 1.85 cu. ft. is ideal.

Q: Can I wire this subwoofer to a 1-ohm load?
A: The XS-W122ES is a single 2-ohm voice coil subwoofer. To achieve a 1-ohm load, you would need to wire two of these subwoofers in parallel.

🏁 Company’s Thoughts

At Stereo Installs, we've tested numerous subwoofers, and the Sony XS-W122ES stands out with its exceptional bass clarity and robust build quality. For those seeking a powerful, versatile, and high-fidelity subwoofer upgrade, we confidently recommend the Sony XS-W122ES Mobile ES™ 12" 2-ohm Subwoofer.
