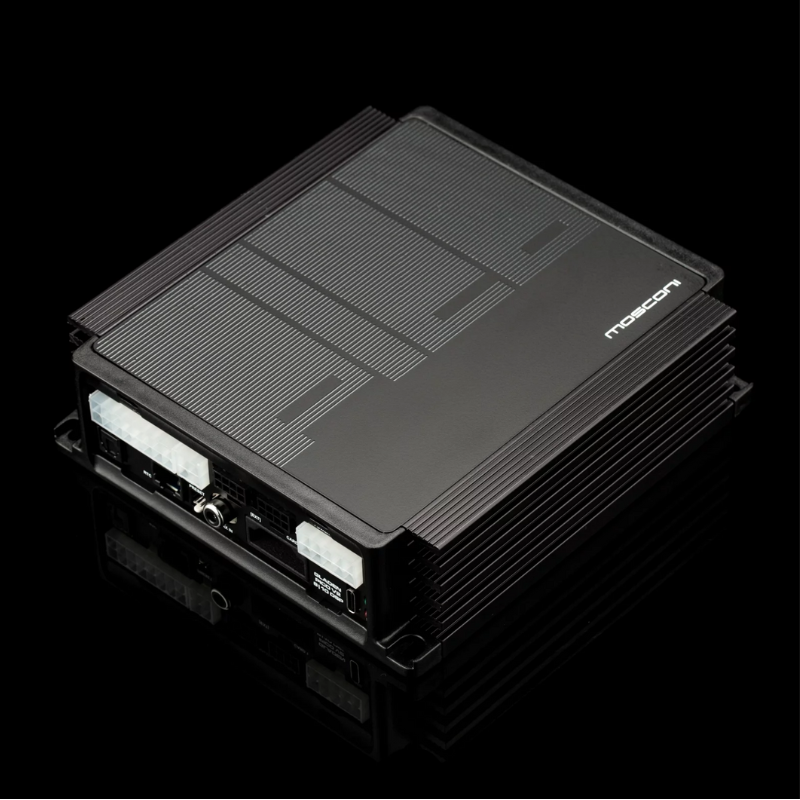

Mosconi Pico V2 8|10 DSP front view

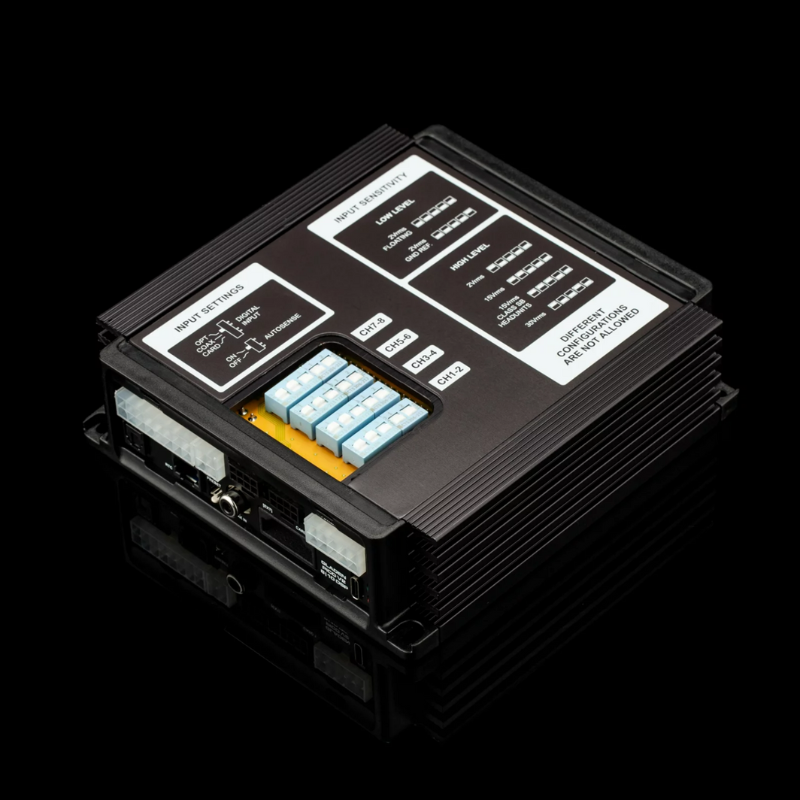

Mosconi Pico V2 8|10 DSP top view with branding
Mosconi Pico V2 8|10 DSP side profile

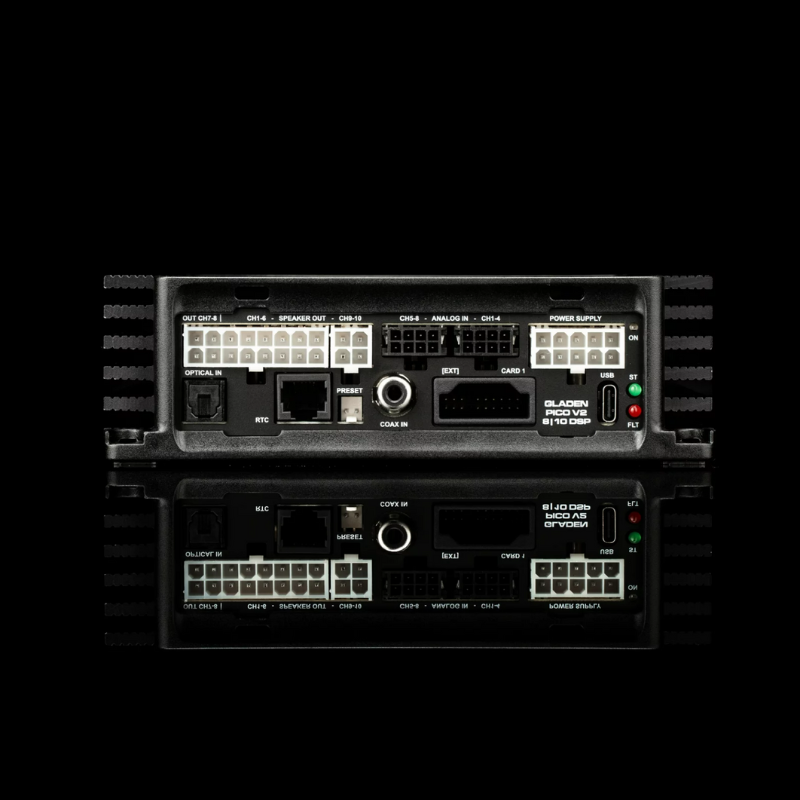

Mosconi Pico V2 8|10 DSP rear panel connections

Mosconi Pico V2 8|10 DSP – 8-Channel Class D Amplifier

Mosconi Pico V2 8|10 DSP front view

Mosconi Pico V2 8|10 DSP – 8-Channel Class D Amplifier

$0.00
Product description

High-Efficiency Amplification Meets Advanced DSP Control

The Mosconi Pico V2 8|10 DSP represents the next generation of compact car audio amplification. Combining an 8-channel Class D amplifier with an integrated 10-channel DSP, it delivers up to 600 Watts of total power, ensuring both efficiency and performance.

Designed for seamless OEM integration, this amplifier features eight analog inputs (high/low level) and two digital inputs (SP-Dif and BT+), accommodating a variety of audio sources. The flexible routing, input EQ, and delay settings allow for precise tuning, making it ideal for active and semi-active systems, as well as traditional front + rear + subwoofer configurations.

The high-speed PWM output stages operate at a carrier frequency exceeding 2 MHz, eliminating the need for DACs and resulting in a noise floor approaching zero with THD+N ~ 0.02% at 1W. All connections are conveniently located on one side, and settings are accessible via a magnetic housing cover, simplifying installation and adjustments.

With its compact dimensions (150 x 160 x 46 mm) and low heat generation, the Mosconi Pico V2 8|10 DSP is perfect for installations where space is at a premium.


🔧 Key Features

  • Amplifier Channels: 8-channel Class D

  • DSP Channels: Integrated 10-channel DSP

  • Total Power Output: Up to 600 Watts

  • Analog Inputs: 8 x switchable (high/low level), up to 30V

  • Digital Inputs: 1 x SP-Dif optical, 1 x coaxial, 1 x BT+ port

  • DSP Processing: 912 MHz, 32-bit audio port, 64-bit core, 96kHz sample rate

  • Control Interfaces: USB-C, remote connector (RTC.2), BT+ control port

  • Software Features:

    • 3 x 9-band parametric input EQ

    • 6 x input delay (0 - 3 ms / 0.01 ms)

    • 10 x digital input level control

    • Flexible mixer for signal routing

    • 6 x 30-band or 4 x 30-band + 2 x 15-band group EQ

    • 8 x 10-band output filters

    • Highpass / lowpass / highshelf / lowshelf / notch / allpass filters

    • 8 x speaker delay (0 - 12 ms, 0.02 ms)

    • 8 x speaker phase switch

    • Integrated analysis tools

  • Efficiency: >80%

  • Dimensions: 150 x 160 x 46 mm

  • Weight: 1150 grams (approx. 2.54 lbs)


📊 Comparison Chart

1. Analog Inputs

  • Mosconi Pico V2 8|10 DSP: 8 (switchable high/low level)

  • Helix DSP Pro MK2: 8

  • Audison bit One HD: 8

2. Analog Outputs

  • Mosconi Pico V2 8|10 DSP: 8

  • Helix DSP Pro MK2: 8

  • Audison bit One HD: 13

3. Digital Inputs

  • Mosconi Pico V2 8|10 DSP: SP-Dif, Coaxial, BT+

  • Helix DSP Pro MK2: Optical, Coaxial

  • Audison bit One HD: Optical, Coaxial

4. DSP Processing

  • Mosconi Pico V2 8|10 DSP: 912 MHz, 32-bit audio port, 64-bit core

  • Helix DSP Pro MK2: 32-bit

  • Audison bit One HD: 24-bit / 96kHz

5. Voltage Compatibility

  • Mosconi Pico V2 8|10 DSP: 8–32V (USB: 5V)

  • Helix DSP Pro MK2: 10–16V

  • Audison bit One HD: 12V only

6. Expandability

  • Mosconi Pico V2 8|10 DSP: Yes

  • Helix DSP Pro MK2: Limited

  • Audison bit One HD: Yes

7. Dimensions

  • Mosconi Pico V2 8|10 DSP: 150 x 160 x 46 mm

  • Helix DSP Pro MK2: 150 x 45 x 100 mm

  • Audison bit One HD: 198 x 35 x 150 mm

8. Weight

  • Mosconi Pico V2 8|10 DSP: 1150g

  • Helix DSP Pro MK2: 600g

  • Audison bit One HD: 1.5kg


⭐ 5-Star Customer Reviews

Michael Thompson
The Mosconi Pico V2 8|10 DSP transformed my car's audio system. The clarity and depth of sound are unparalleled, and the compact size made installation effortless.

Sarah Johnson
I integrated this amplifier into my factory system, and the improvement was immediate. The DSP features allowed me to fine-tune the audio to perfection.


🗣️ Stereo Installs Google Reviews

Stereo Installs recommended the Mosconi Pico V2 8|10 DSP for my setup, and it was the perfect choice. The installation was seamless, and the performance is outstanding.
Thanks to the team at Stereo Installs, my car's audio system has never sounded better. The Mosconi Pico V2 8|10 DSP brought clarity and depth I didn't think was possible.

The Mosconi Pico V2 8|10 DSP stands out as a compact yet powerful solution for car audio enthusiasts seeking high-quality sound and advanced processing capabilities. Its seamless integration with factory systems, combined with efficient Class D amplification and a robust 10-channel DSP, makes it an ideal choice for those looking to elevate their in-car audio experience.
