200W Peak, Neodymium Motor

Extreme SPL Performance in a Compact Design

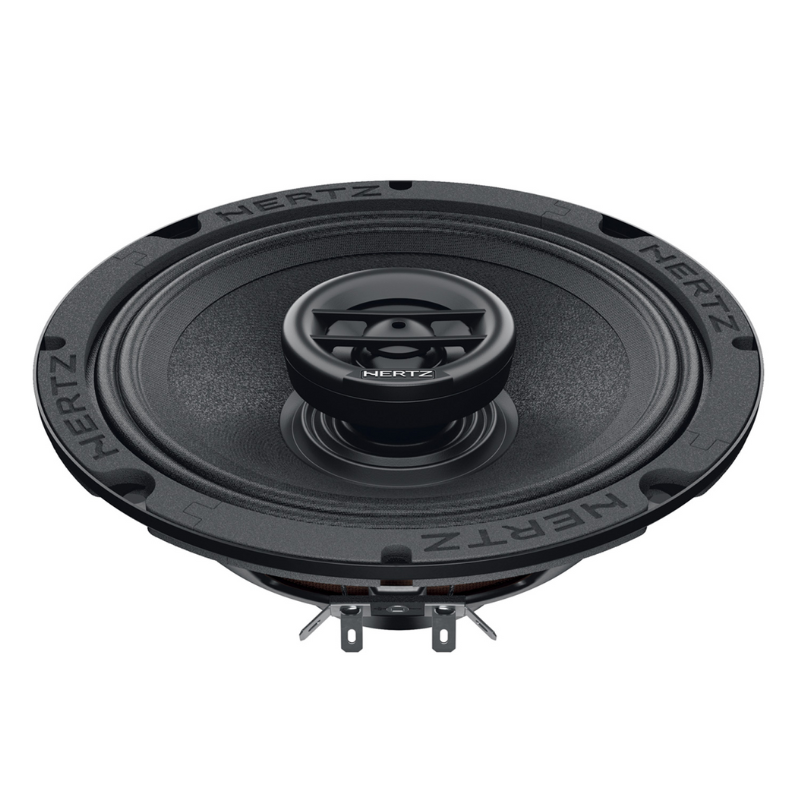

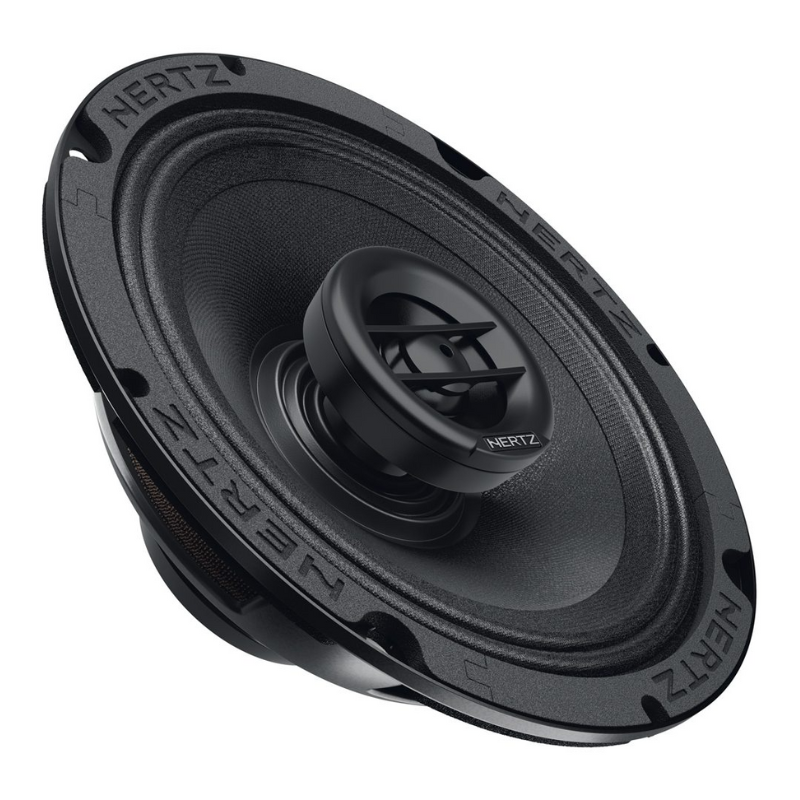

The Hertz SX 165 NEO is built for enthusiasts who demand maximum sound pressure, durability, and lightweight design. Featuring special N38 H neodymium magnets, these 6.5-inch SPL coaxial speakers deliver incredible volume and clarity while remaining compact enough for motorcycles, powersports, and outdoor applications.

Built Tough for Any Environment

The pressed-paper cone is reinforced with water-repellent, UV-resistant, and humidity-protective treatments, ensuring consistent performance in harsh outdoor conditions. A protective rubber gasket shields the speaker during extreme SPL use, making it ideal for high-performance audio builds that face the elements.

Power, Clarity, and Protection

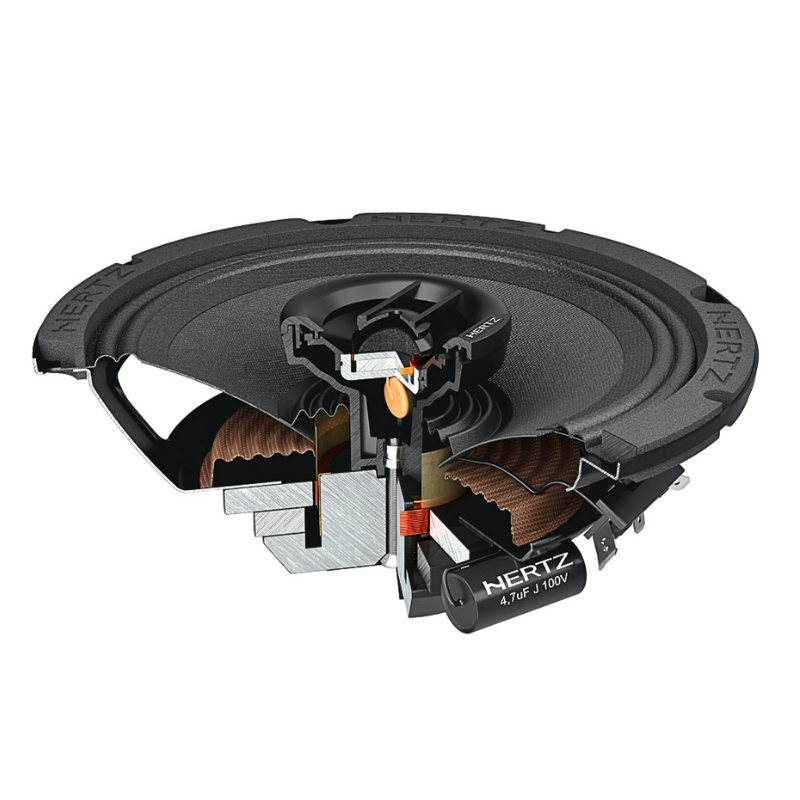

With a double-layer copper voice coil wound on a polyamide former, the SX 165 NEO can handle up to 200W peak with exceptional low-frequency control. The 1.4″ PEI dome tweeter delivers clean, detailed highs, while a resettable solid-state protection circuit safeguards the tweeter during high-output sessions.

Quick Install & Versatile Mounting

The double Fast-On terminals make wiring fast and allow for daisy-chaining multiple speakers. Despite its high output, the lightweight neodymium motor ensures it fits easily into tight spaces without sacrificing performance.

Key Features

• 6.5″ SPL Coaxial Speakers for extreme sound pressure levels

• 200W peak / 100W RMS power handling

• 96.5 dB sensitivity for maximum loudness with minimal power

• Water, humidity, and UV-protected pressed-paper cone

• 1.4″ PEI dome tweeter with resettable protection circuit

• Lightweight N38 H neodymium magnet motor

• Double Fast-On terminals for quick install and daisy-chain setups

• Protective rubber gasket for safe outdoor use

Comparison Chart

Professional Opinion

For those who want loud, clear sound that dominates in open-air environments, the Hertz SX 165 NEO is a go-to choice. Its lightweight neodymium design keeps weight down without sacrificing SPL power, making it perfect for motorcycles, ATVs, and competition-level outdoor audio setups.

F.A.Q.

Q: Are these sold as a pair?
A: Yes, they’re sold as a matched pair.

Q: Can I use them with my stock stereo?
A: They’ll work, but an amplifier will unlock their full SPL performance.

Q: Are they weather-resistant?
A: Yes—treated cones and rubber gasket make them safe for outdoor and marine use.

Q: Do they fit a standard 6.5″ opening?
A: Yes, they are designed for OEM and aftermarket 6.5″ cutouts.

Technical Details

• Brand: Hertz

• Model: SX 165 NEO

• Size: 6.5″ SPL Coaxial

• RMS Power: 100W

• Peak Power: 200W

• Sensitivity: 96.5 dB

• Frequency Response: 100Hz – 20kHz

• Impedance: 4Ω

• Cone Material: Water-repellent pressed paper

• Tweeter: 1.4″ PEI dome

• Mounting Depth: 128mm (5.04″)

• Magnet: N38 H Neodymium

• Weight (each): 0.94 kg (2.08 lbs)

• UPC: [To be confirmed]

• Sold As: Pair

Take your sound to the next level with the Hertz SX 165 NEO 6.5″ SPL Coaxial Speakers – 200W Peak, Neodymium Motor, built for extreme output in any environment.
