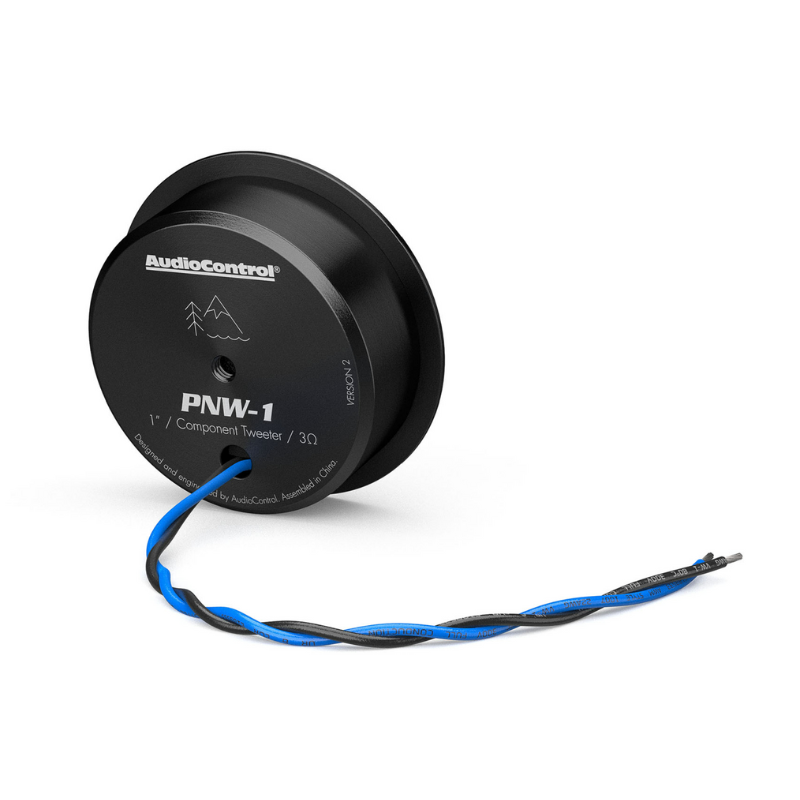

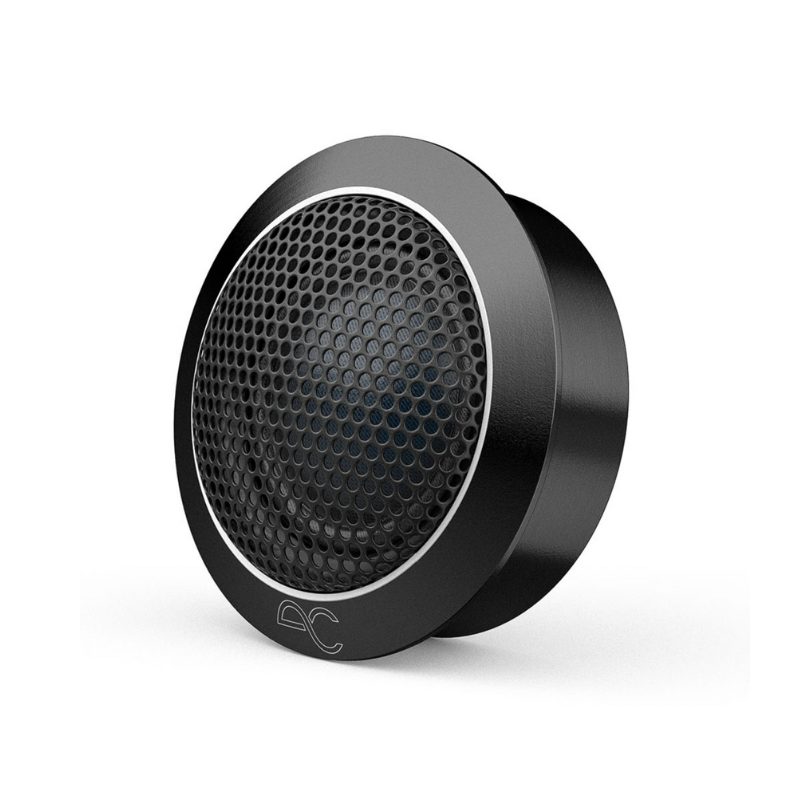

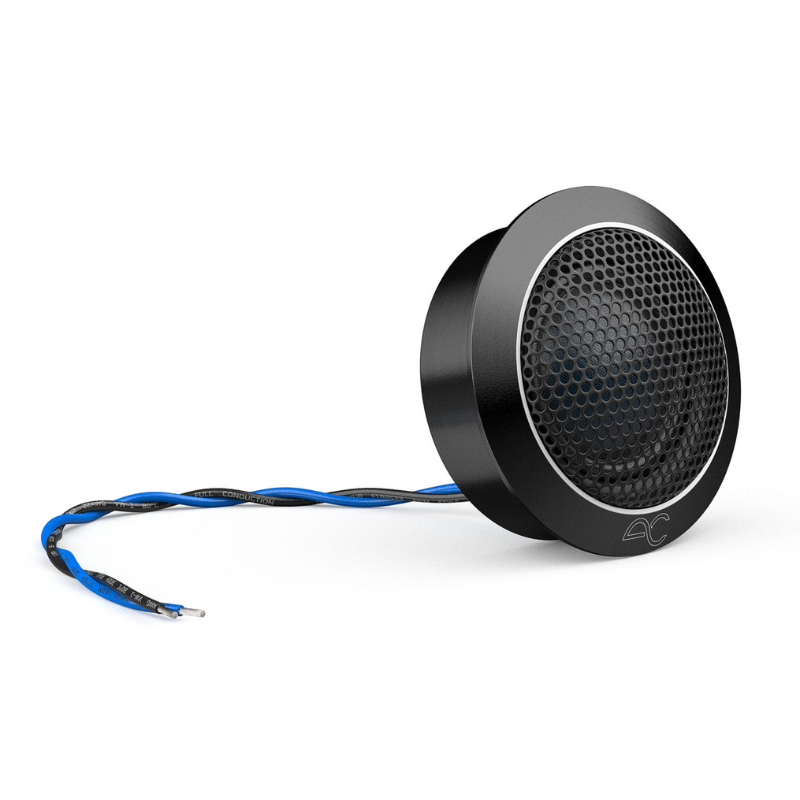

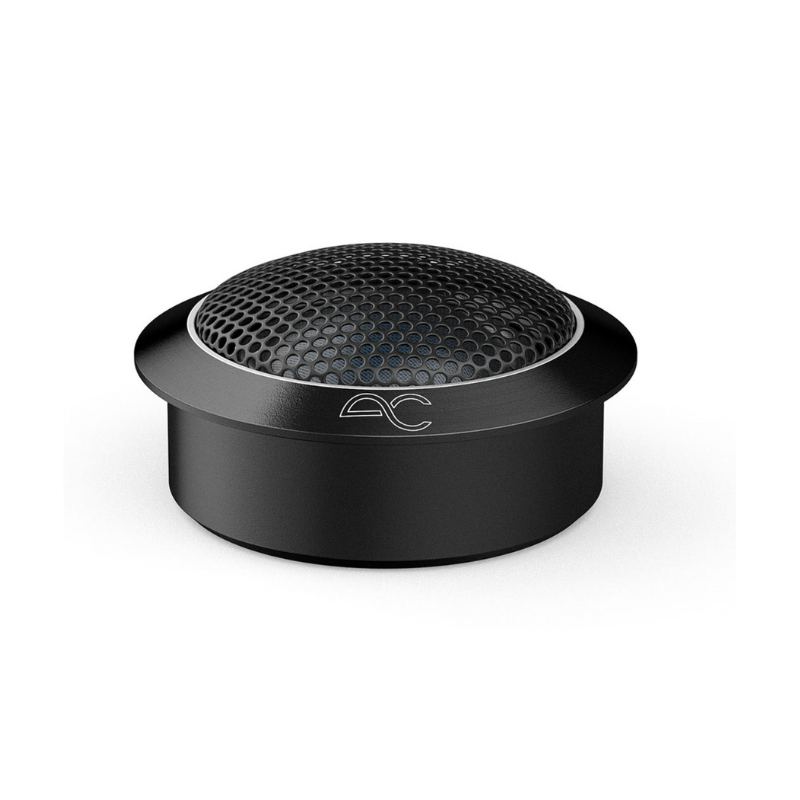

AudioControl PNW-1 High-Fidelity Tweeters

Product Overview

The AudioControl PNW-1 tweeters are engineered to deliver pristine, distortion-free highs for an exceptional listening experience. Featuring a hybrid silk dome diaphragm, precision-machined aluminum housing, and a compact neodymium magnet, these tweeters bring unmatched clarity and detail to your audio system.

With detachable housing and multiple mounting accessories, installation is flexible for both aftermarket and OEM applications. The included in-line high-pass filters ensure only the most accurate frequencies reach the tweeter, enhancing performance while minimizing distortion.

Whether you’re upgrading your factory audio or fine-tuning a custom setup, the PNW-1 is the perfect match for AudioControl’s PNW series speakers or any premium system that demands accurate, immersive high-frequency reproduction.

Key Features

• Hybrid Silk Dome Diaphragm – Accurate, smooth sound with extended frequency response.

• Precision Machined Aluminum Housing – Rugged build with a premium finish.

• Embedded Sonic Damping Pad – Reduces unwanted resonance for cleaner output.

• Neodymium Magnet – High efficiency in a compact form factor.

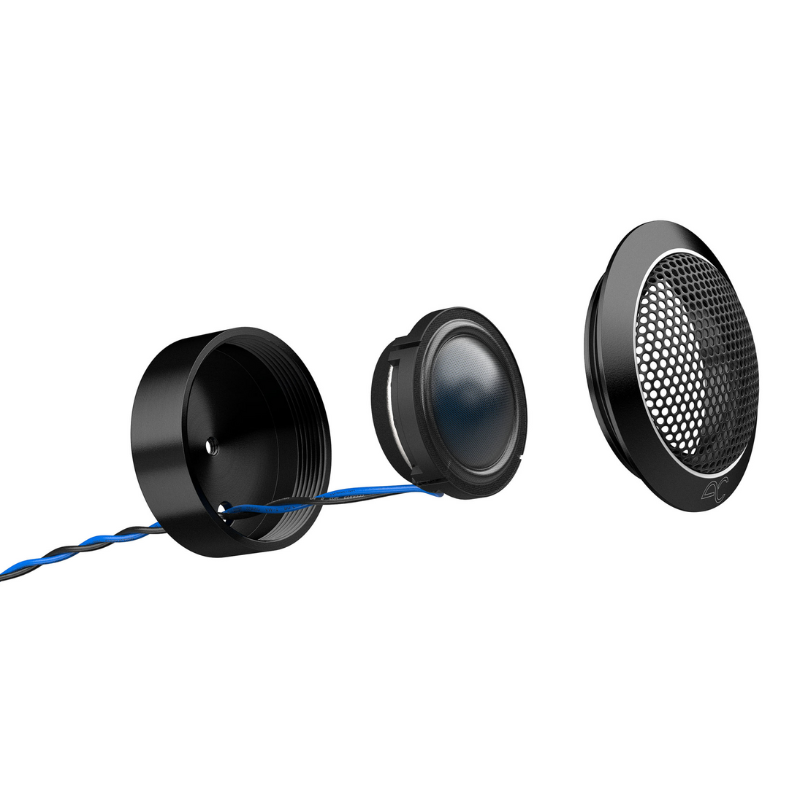

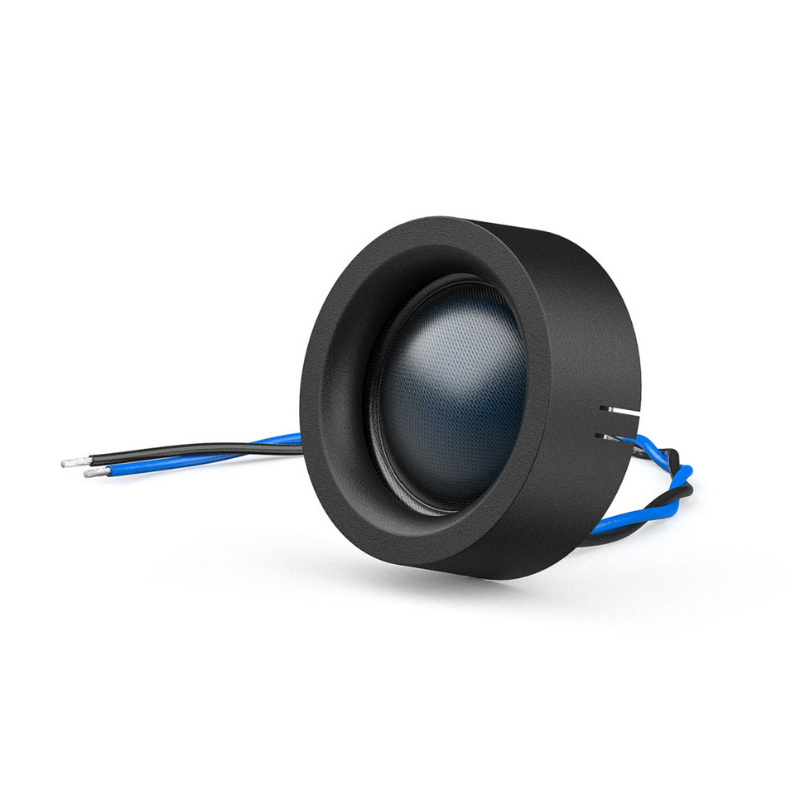

• Detachable Housing Assembly – Designed for OE and custom applications.

• Multiple Mounting Accessories – Flush, angle, and surface mount options.

• In-Line High-Pass Filters Included – 3.5 kHz crossover to protect and optimize tweeter performance.

Specifications

Tweeter:

• Voice Coil Diameter: 25 mm

• Nominal Impedance: 3Ω

• DC Resistance (Re): 2.3Ω

• Resonance Frequency (Fs): 1.621 kHz

• Frequency Response: 1k – 20kHz

• Qms: 6.92

• Qes: 2.3091

• Qts: 1.7314

Crossover:

• Type: 1st Order Butterworth

• Frequency: 3.5 kHz HP

• Slope: -6 dB/octave

Dimensions:

• Overall Diameter (with grille): 2.13" (54 mm)

• Cut-Out Diameter: 1.85" (47 mm)

• Mounting Depth: 0.63" (16 mm)

What's in the Box

• (2) PNW-1 Tweeters

• Mounting Hardware Kit (Flush, Angle, Surface Options)

• In-Line High-Pass Filters

• User Manual

• Warranty Information

Professional Opinion

The AudioControl PNW-1 tweeters are ideal for those who value detail, clarity, and precision in their highs without the harshness some metal dome tweeters produce. The hybrid silk dome offers warmth and accuracy, making them suitable for both critical listening setups and high-performance automotive sound systems. Pairing them with the PNW series midbass or midrange speakers creates a seamless, balanced soundstage.

FAQ – AudioControl PNW-1

Q: Can these tweeters be used with other speaker brands?
A: Yes. They work well in any system that supports a 3Ω tweeter, but pairing with AudioControl PNW speakers yields the best sonic integration.

Q: Are the in-line crossovers required for use?
A: Yes, they protect the tweeters from low-frequency damage and optimize performance.

Q: Can I mount them in factory locations?
A: In many cases, yes. The detachable housing and included mounts make OEM integration easier.

Q: Are these tweeters harsh at high volumes?
A: No. The hybrid silk dome design provides smooth highs even at elevated listening levels.

Q: What’s the power handling range?
A: They can handle 75W RMS / 150W peak per pair when properly crossed over.

Elevate your highs with the AudioControl PNW-1 High-Fidelity Tweeters – delivering smooth, accurate sound in a durable, compact design.
